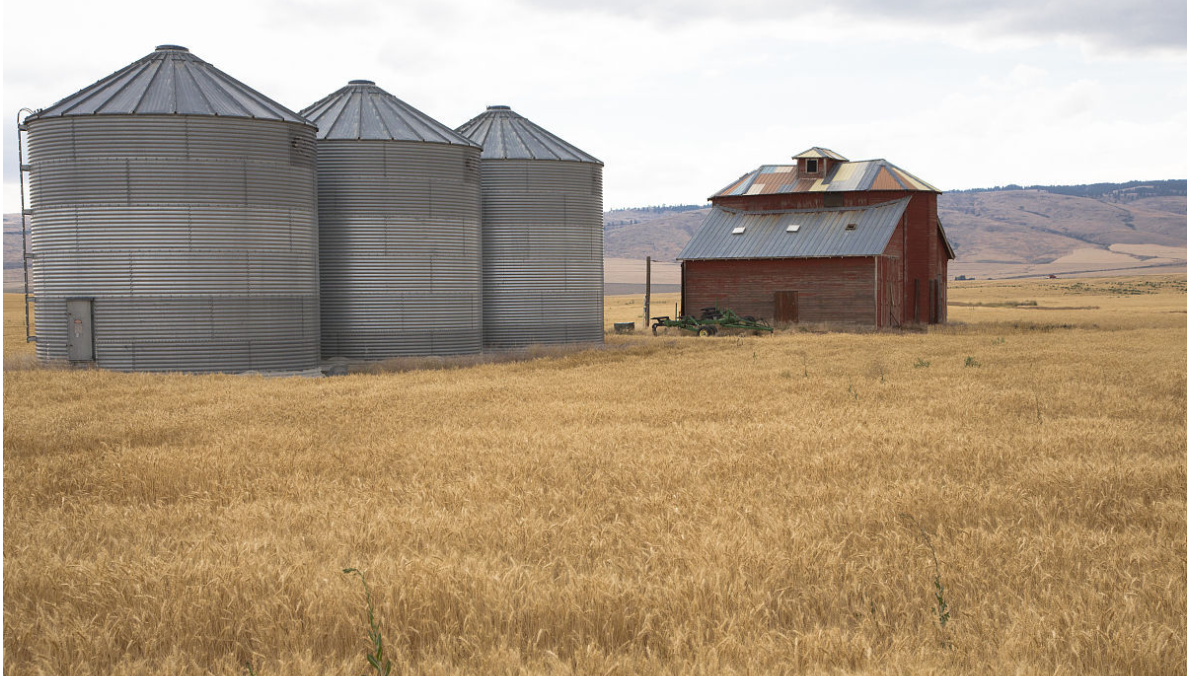

Steel silos are widely used in farm, rice mill, flour mill, feed mill, soybean-oil mill, brewery plant and so on to store bulk grain(such as bulk wheat, corn, rice, paddy, sorghum, soya etc.), petfood, poultry feed, cereal seeds, plastic pellet, wooden pellet etc.
Grain Silo Description:
Steel silos are widely used in farm, rice mill, flour mill, feed mill, soybean-oil mill, brewery plant and so on to store bulk grain(such as bulk wheat, corn, rice, paddy, sorghum, soya etc.), petfood, poultry feed, cereal seeds, plastic pellet, wooden pellet etc.
We manufacture assembly steel hopper bottom grain silos with bin capacity of 50—10000 tons, which are made of hot-dip galvanized steel sheets and can be used 20~50 years.
1. Various capacity and customized silo. The capacity ranges from 50T to 10000T . Other required capacity can be customized.
2. Fully equipped factory. With mature special cutting and drilling technology, all parts are specially cleaned on the surface, and well painted both inside and outside.
3. Professional packing and loading.
Easy transportation for exporting,pack into container, transport by land or sea around the world.
1. All parts of silos can be packed into bundles with short loading time and little space.
2. The silos can be transported regardless of size. It can greatly reduce the transportation cost because more than one silo may be carried by one truck or container.
3. Jinhua grain silos are easily packed into container to the world and it no longer uses the conventional way of break-bulk cargo transportation.
4. Easy assembly. All the parts of grain silo can be well assembled with the help of Installation Team.
| No | Name | Model | Qty | Motor (kw) | Remarks | |||||
| Single | Total | |||||||||
| 1.Steel plate silo section | ||||||||||
| 101 | Steel plate silo | TCGZ20.1×19C | 1 | 3715m³/silo | ||||||
| 102 | Level indicator | Damped rotation type | 2 | indicator | ||||||
| 103 | Ventilation system | 4-72№4.5A T30-11 | 1 | 5.5×4+1.1×4 | 26.4 | 4 draw fan&4 induced fan/silo | ||||
| 104 | Temperature measuring system | 7 lines78 point | 1 | Remote Display | ||||||
| 105 | Bucket elevator rack | 2.0m×2.0m×30m | 1 | Galvanize steel made | ||||||
| 106 | Rood corridor | 2.0m×0.8m×13m | 1 | Galvanize steel made | ||||||
| Total | 26.40 | |||||||||
| 2.Clean& conveyor section | ||||||||||
| 201 | Bucket elevator | TDTG40/23×30m | 1 | 7.5 | 7.5 | 30t/h | ||||
| 202 | Wire&triple | TSTD25×25 | 1 | 0.023 | 0.023 | |||||
| 203 | Roof rubber belt conveyor | TDSG50×10.5m | 1 | 3 | 3 | 30t/h | ||||
| 204 | Hand door | TZMS25 | 7 | For discharge | ||||||
| 205 | Electric gate | TZMD25 | 1 | 0.55 | 0.6 | For discharge | ||||
| 206 | Bottom rubber belt conveyor | TDSG50×21m | 1 | 7.5 | 7.5 | 25t/h(subject to design) | ||||
| 207 | Wear-resisting tube | 250×250 | 1 | 20m(including joint parts) | ||||||
| 208 | Wear-resisting tube rack | 1 | Galvanized welded, 10m | |||||||
| Total | 18.57 | |||||||||
| 3.Electrical System
|
||||||||||
| 301 | Electrical Control System | GGD | 1 | Electrical System made by Chint Group,cable lines supplied by buyer | ||||||
| 401 | Auxiliary materials | 1 | Oxygen 、acetylene、welding electrode、painting | |||||||
| Total | 44.97 | |||||||||
