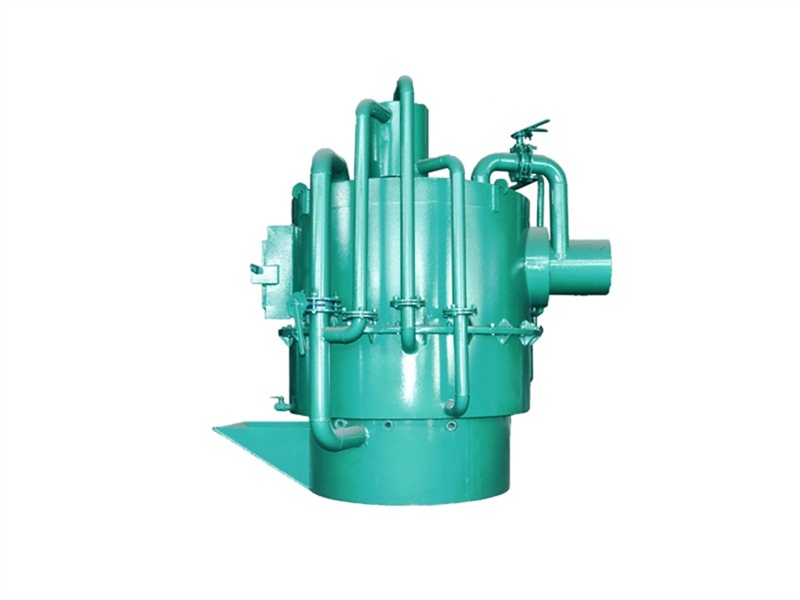

The coal gasifier converts into combustible gas (mainly composed of CO, H2, CH4, etc.) production equipment.
Water gas is produced by water vapor through the hot coke .The main component is carbon monoxide and hydrogen, water and carbon dioxide emissions after combustion with a little CO, HC, NOX. Its burning rate is 7.5 times that of gasoline, the anti-detonating quality is well. According to foreign reports of research and patents the compression ratio can reach 12.5, the power efficiency increased by 15%, the fuel consumption reduce in 30%, exhaust gas purification nearly Euro Ⅳ standard . It is a energy saving products strively promoted by country.
After the coal screening, added it to the gasifier, using the production of steam and air mixture from the bottom drum as a gasifying agent. Coal in the furnace by physical, chemical reaction will produce combustible gas, after the gas was mixed it can be delivered to the user. It is necessary equipment in drying industry.
| Type | Power kw | Coal consumption （hour) | capacity |
| 1000 | 1.1 | 20-50kg | 60-75m³ |
| 1200 | 1.5 | 30-40kg | 90-120 m³ |
| 1300 | 2.2 | 40-50kg | 120-150 m³ |
| 1400 | 3 | 45-55kg | 135-165 m³ |
| 1500 | 3 | 50-65kg | 150-195 m³ |
Please feel free to give your inquiry in the form below. We will reply you in 24 hours.
